High speed, capable of producing 760 parts per minute. High capacity and excellent quality.
DAPU PRODUCTS
PRODUCTS
Nail-making machine
The nail-making machine is used to produce wooden nails in various sizes. We offer two types of machines for you to choose from: high-speed and standard models. The maximum capacity can reach 760 pieces per minute. The entire product line includes a nail-polishing machine and a cutter-grinding machine. High production output and excellent quality of the finished nails will help you capture a larger market share and secure more orders.
Key words:
Classification:
Product Description
| Product description: |
The nail-making machine is used to produce wooden nails in various sizes. We offer two types of machines for you to choose from: high-speed and standard models. The maximum capacity can reach 760 pieces per minute.
The entire product line includes nail polishers and grinders for cutters. High production output and excellent quality of finished nails will help you capture more market share and orders.
| Technical parameters: |
Normal type : |
| Model | Wire diameter | Nail length | Capacity (pieces/min) | Motor (kW) | Dimension (mm) | Weight (KGS) |
| Z94-1C | 0.9–1.6 mm | 9-25 mm | 450 | 1.5 | 1440 x 1040 x 1270 | 1200 |
| Z94-2C | 1.2–2.8 mm | 16-50 mm | 350 | 2.2 | 1670*1240*1380 | 1400 |
| Z94-3C | 1.8–3.4 mm | 30-75 mm | 320 | 3 | 1830*1300*1470 | 1100 |
| Z94-4C | 2.8–4.5 mm | 50-100 mm | 280 | 4 | 2130 x 1560 x 1580 | 2000 |
| Z94-5.5C | 3.7–5.5 mm | 80-150 mm | 200 | 5.5 | 2500*1600*1700 | 2500 |
High-speed type : |
| Model | DP-X50P | DP-X90P | DP-X130P | DP-X150P |
| Wire diameter | 1.8-2.5mm | 2-3.5mm | SS steel 2.5–4.8 mm Low-carbon 2.5–5.2 mm | SS steel 2.5–4.8 mm Low-carbon 2.5–5.5 mm |
| Nail length | 32-64mm | 32-92mm | 50-130mm | 70-150mm |
| Speed | 800pcs/min | 760pcs/min | 650pcs/min | 500pcs/min |
| Motor | 5.5 kW + 1.5 kW | 5.5 kW + 1.5 kW | 7.5 kW + 2.2 kW | 11 kW + 2.2 kW |
| Dimension | 1500 x 950 x 1300 mm 1600 x 900 x 1650 mm 420 x 760 x 970 mm | 1500 x 1180 x 1100 mm 1600 x 900 x 1650 mm 420 x 760 x 970 mm | 1540 x 1160 x 1300 mm 1600 x 900 x 1650 mm 420 x 760 x 970 mm | 1650 x 1200 x 1300 mm 1600 x 900 x 1650 mm 420 x 760 x 970 mm |
| Weight | 2500kg | 2800kg | 4200kg | 4500kg |
| Advantages of the machine: |
The mold and the cutter are made of high-quality material, which extends their service life.

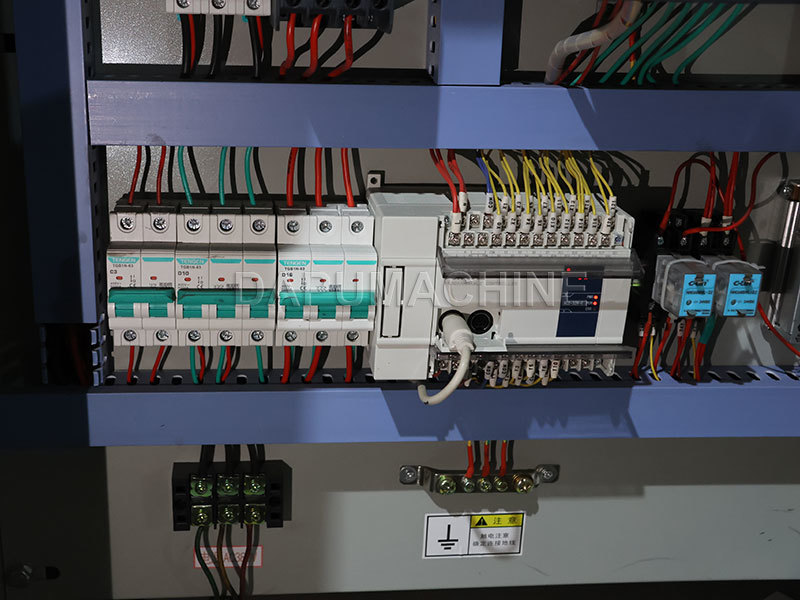

Electrical components from a renowned brand in the control cabinet, ensuring more stable machine operation.

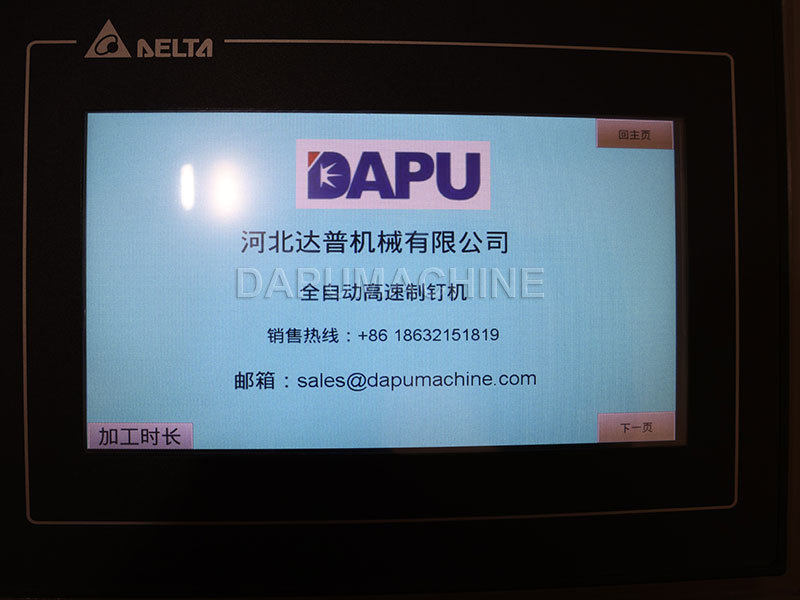

The operation is simple and convenient via the touchscreen.
| Products and applications : |

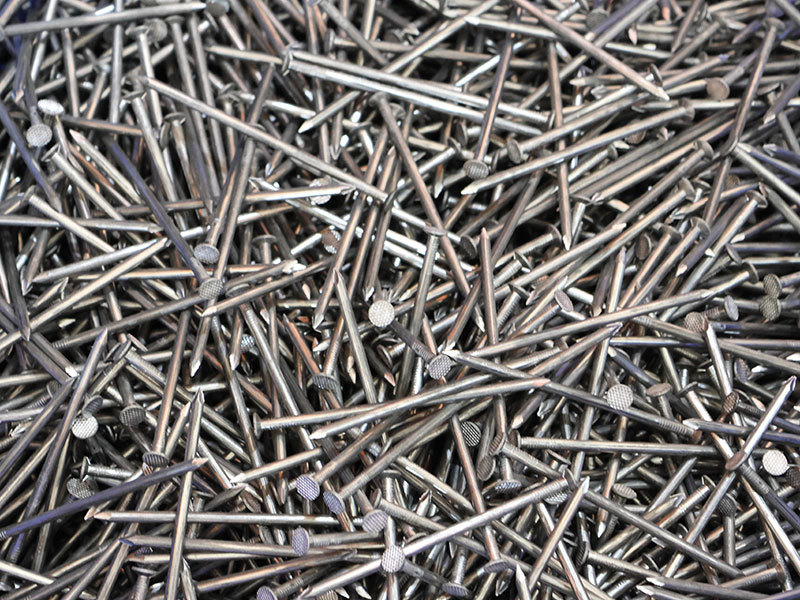

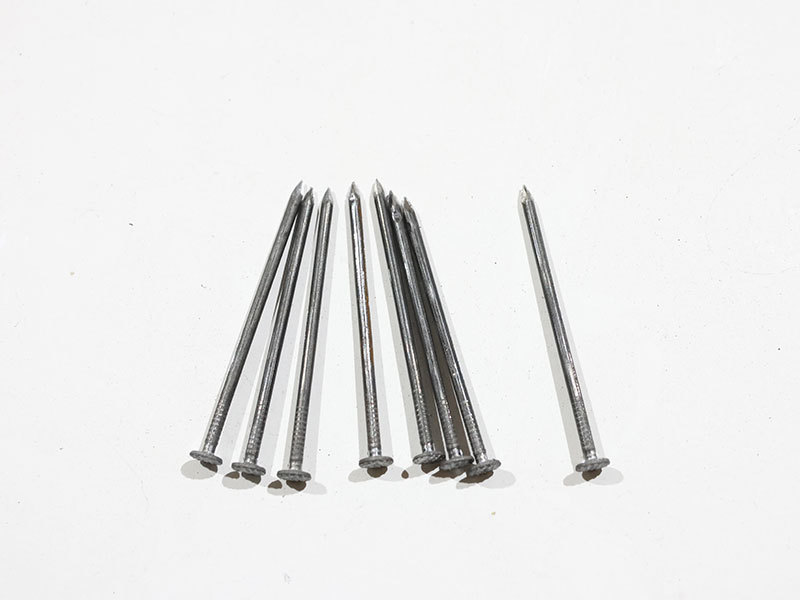

Nails are one of the most widely used fastening elements in construction and everyday life. They are commonly applied in construction and carpentry projects , such as wooden structures, floors, roofs, and furniture manufacturing. In addition, nails are used in manufacture of packaging and pallets , ensuring that the products are protected during storage and transportation. They are also essential in DIY projects and home repairs , providing a simple yet reliable fastening solution. With various types and sizes available, nails meet diverse needs in construction, industrial, and household applications.
| Video: |
Click to watch the product video
Country to which we sold: |
Kuwait, Saudi Arabia, Thailand, India, Pakistan, El Salvador, Uganda, Tanzania, Kenya, the United States, New Zealand, Canada, Mexico, Nicaragua, Brazil, Chile, Argentina, Guatemala, Panama, Peru, South Africa, Bhutan, South Africa, and others.
After-sales service that includes: |
1. Complete installation video from A to Z, 2. Product line design and electrical schematics. 3. Installation Instructions and Manual. 24-hour online service for every question. | The technician is on board for the installation. Cost: 1. Round-trip airfare 2. Visa fee 3. Salary: 150 USD/day 4. Food and accommodation |
After-sales service that includes: |
Lubricate regularly as directed.
Checking the electrical cable connections every month.
Clean the weld area every day!
Frequently Asked Questions: |
What payment methods are accepted?
A: We accept T/T or L/C. A 30% deposit is required upfront, after which we will begin manufacturing the machine. Once the machine is ready, we will send you a test video, or you may come to inspect it in person. If you are satisfied with the machine, please proceed with payment of the remaining 70%. We will then load the machine and ship it to your destination.
How to transport different types of machinery?
A: Normally, 1 machine set is required. LCL packaging in a wooden crate or 20GP for 5 sets in Container—choose according to the type of machine and auxiliary equipment you select.
The Welding mesh delivery time Machine?
A: 25 days
How do you replace worn-out parts?
A: We provide free shipping of spare parts boxes along with the machine. If other parts are needed, we usually have them in stock and will ship them within 3 days.
